Clay soil or intense rain on a property does not dictate one court system, but it makes site preparation and water control impossible to ignore. Ask every provider to describe the court from the existing ground to the line paint.

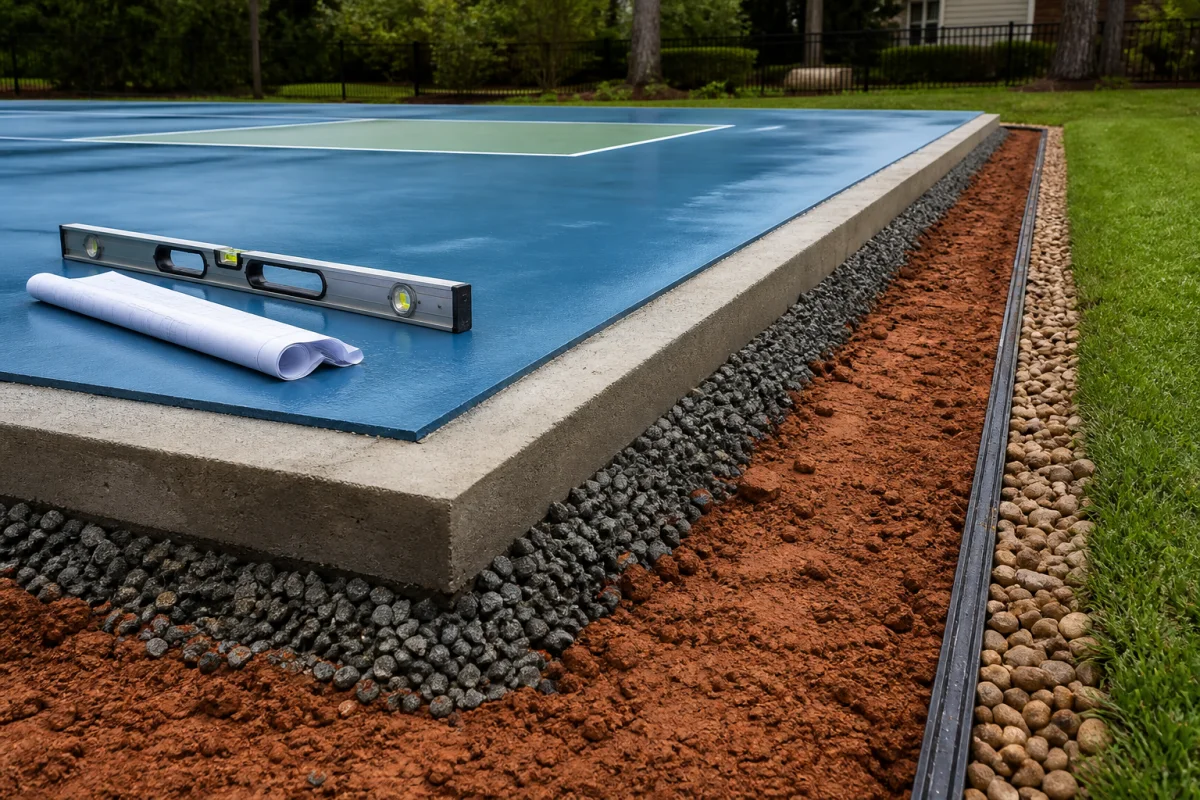

Read the court as one layered system
| Layer | Main job | What to ask |
|---|---|---|
| Existing soil | Carries the completed system | What is removed, dried, stabilized or replaced? |
| Prepared subgrade | Creates the intended shape and support | How is it graded, compacted and checked? |
| Aggregate | Spreads load and supports the base | What material and compacted depth are planned? |
| Concrete or asphalt | Provides the hard playing platform | What thickness, edge, slope, joint and reinforcement details apply? |
| Playing surface | Adds texture, color and lines | Which preparation, product layers and repairs are included? |
| Perimeter drainage | Keeps outside water away and carries court runoff | Where does water enter, travel, leave and get maintained? |
Request this information in writing before the layers are covered. Dated photos of the subgrade, stone, drains and base can help if a later repair is needed.
Plan water before choosing the base
Draw simple arrows for four conditions: water arriving from uphill, rain falling on the court, water crossing the playing surface and the final outlet. Add roof drains, swales, retaining walls and low ground.
Charlotte zoning defines concrete, asphalt and gravel among the materials that can count as impervious ground cover. Mecklenburg County’s impervious mapping also tracks hard surfaces by parcel. That does not by itself decide whether a court is allowed, but it is a reason to show the complete pad and all related hard areas when asking for a property-specific answer.
A drainage proposal should name any surface flow, channel, underdrain, catch basin, swale or pipe and the party responsible for the outlet. It should not send water toward a foundation, neighboring lot or unstable bank.
Compare concrete and asphalt as complete systems
USA Pickleball’s construction guidance says either asphalt or concrete can provide an acceptable base when the court’s surface, slope, drainage and construction requirements are met.
For concrete, ask whether the proposal uses conventional reinforced or post- tensioned construction, then check thickness, reinforcement or tendon design, joints, surface finish, edges and the required wait before coatings. For asphalt, ask about the aggregate structure, pavement thickness, compaction, edge support and weathering or curing requirements.
Do not compare only the base price. Compare the installed system and the written responsibility if base movement affects the playing finish.
Specify what “acrylic surface” means
USA Pickleball recommends 100% acrylic coatings for permanent athletic-court surfacing. A proposed system may include cleaning, crack or low-spot repair, an acrylic resurfacer, color coats, texture, line paint and optional cushion layers.
Ask for the manufacturer, named system, preparation, number of coats, colors, line layout, weather limits and base condition required. “Paint included” is not enough detail to compare products or resolve a later problem.
Understand what modular tiles do and do not do
Modular products can change the playing feel and installation method. They still need a supporting surface that meets the manufacturer’s requirements. Ask how water moves through or below the tiles, how the edges are finished and how a damaged area is repaired.
Compare ball response, seams, heat, traction, sound, upkeep and replacement with an acrylic system. Make sure a tile quote does not leave the land, drainage and base outside the project total.
Ask whether the system can be lifted for inspection or repair and whether water and debris can be cleared beneath it. Those practical details affect long-term care as much as the initial installation speed.
Make base acceptance a visible handoff
Before surfacing, the installer should receive a clean, properly prepared base with the required slope, moisture condition and tolerances. Ask who checks elevations, puddling, cracks, joints and finish texture.
If different companies build and surface the base, add a written inspection and acceptance point between them. Test the court after rain or with an agreed water check before the final surface hides the work.
Keep roots and retaining work in the same plan
Tree roots can affect excavation and lift pavement as they grow. Removing trees can also alter runoff, shade and the local review path. Show the root area and any retaining wall before the court location is fixed.
A retaining wall supporting the court is not a landscaping afterthought. The quote should cover its structure, drainage, access and relationship to the base. Use the complete construction scope to keep that work from falling between contractors.
Compare these layers as separate prices
Ask for distinct lines for earthwork, aggregate, structural base, drainage and playing finish. Add fence, lighting, approvals and yard restoration outside those layers. The cost guide provides the matching budget table.
Frequently asked questions
Is concrete always better than asphalt for a court?
No universal answer fits every property. Compare the designed section, site conditions, drainage, surface system, movement plan, cost and repair path.
Can acrylic coating fix puddles?
Preparation can correct small defects, but the base and drainage must provide the main shape. A coating should not be expected to reshape a poorly built base.
Do modular tiles avoid drainage work?
No. Water still needs a safe route through, below or around the system.
